Totally Integrated Power Module

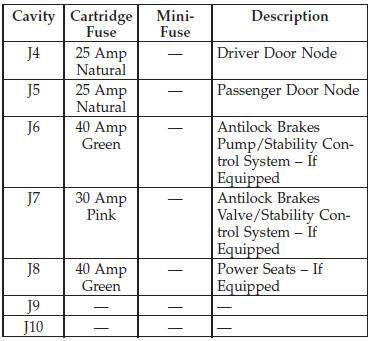

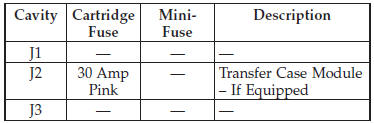

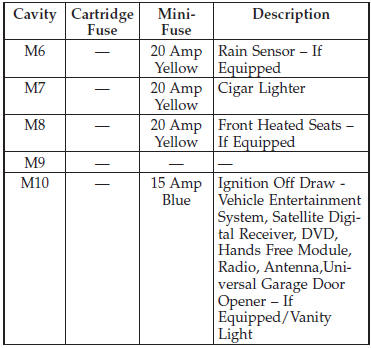

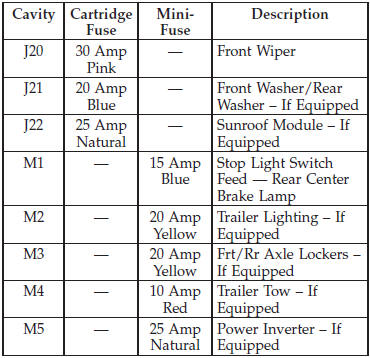

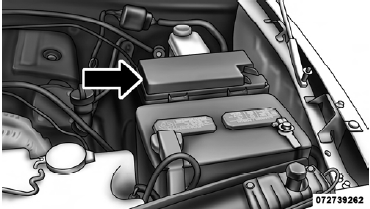

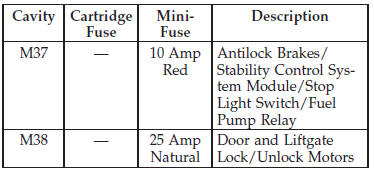

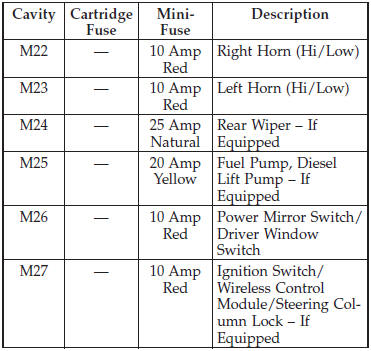

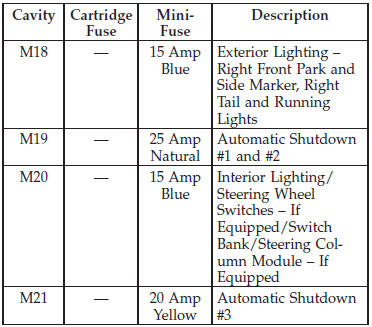

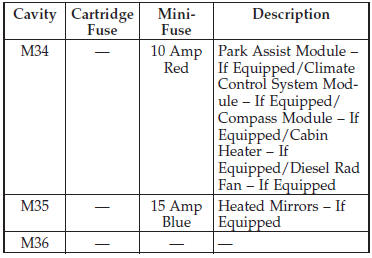

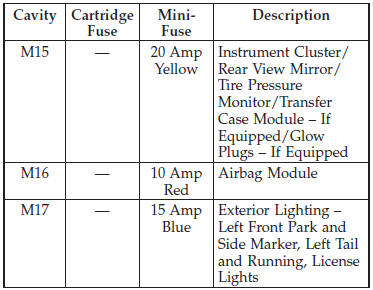

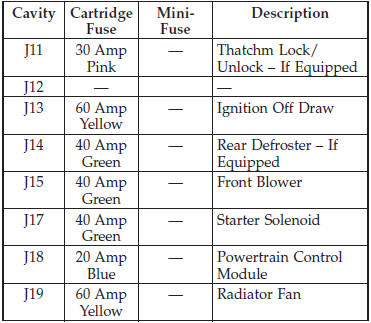

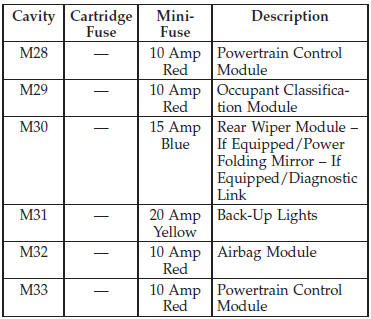

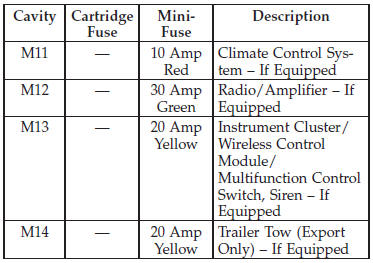

The Totally Integrated Power Module is located in the engine compartment near the battery. This center contains cartridge fuses, mini-fuses and relays. A label that identifies each component is printed on the inside of the cover.
Totally Integrated Power Module
CAUTION!
• When installing the Integrated Power Module
cover, it is important to ensure the cover is properly
positioned and fully latched. Failure to do so
may allow water to get into the Integrated Power
Module, and possibly result in an electrical system
failure.
• When replacing a blown fuse, it is important to use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated may result in a dangerous electrical system overload.
If a properly rated fuse continues to blow, it indicates a problem in the circuit that must be corrected.
