Totally Integrated Power Module

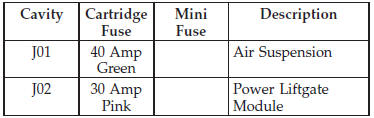

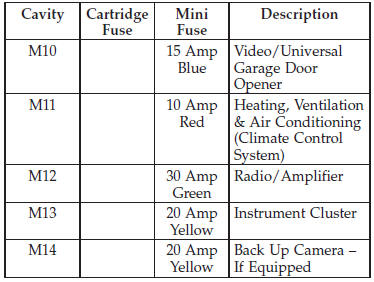

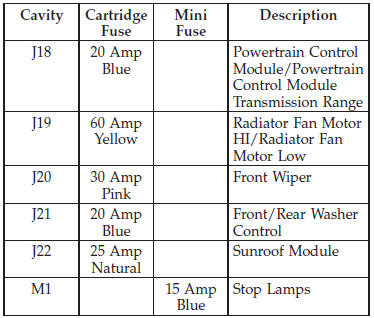

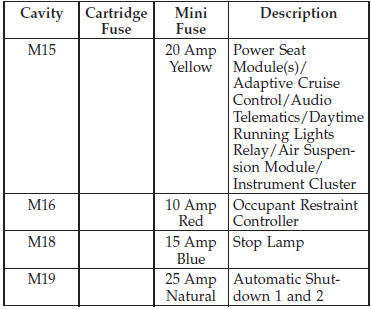

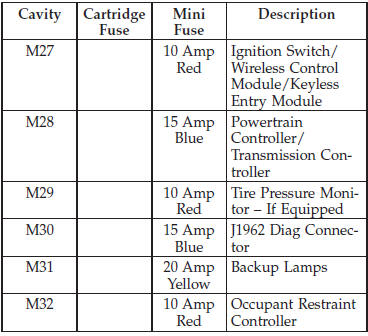

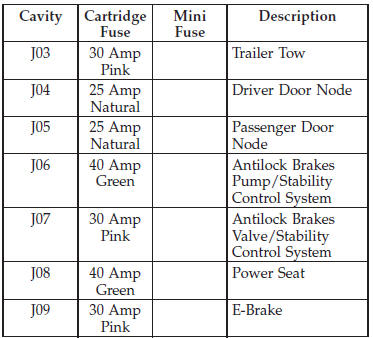

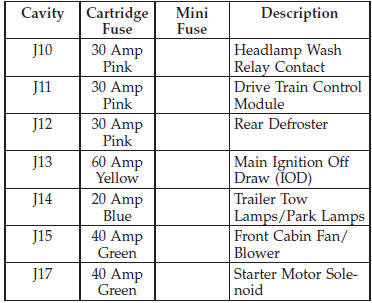

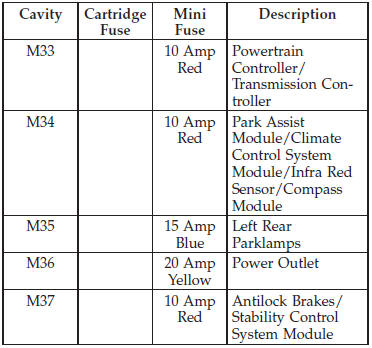

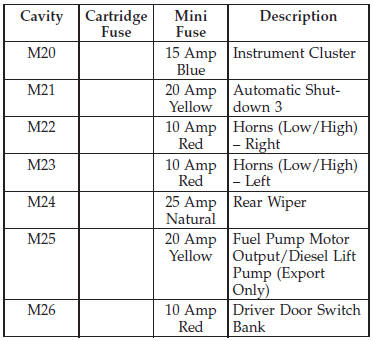

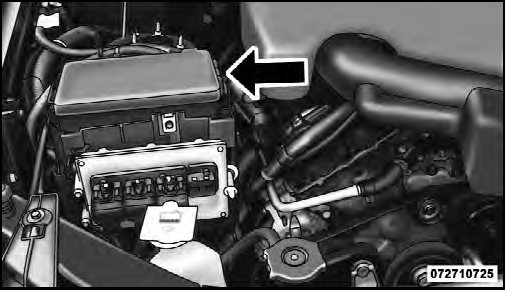

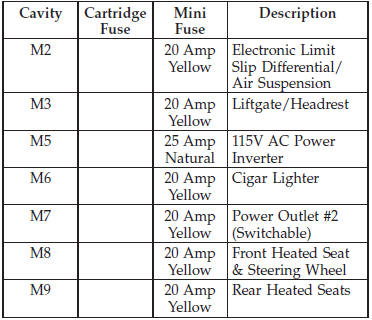

The Totally Integrated Power Module is located in the engine compartment. This center contains cartridge fuses and mini fuses. A description of each fuse and component may be stamped on the inside cover, otherwise the cavity number of each fuse is stamped on the inside cover that corresponds to the following chart.

Totally Integrated Power Module
Totally Integrated Power Module

CAUTION!

CAUTION!
• When installing the totally integrated power module cover, it is important to ensure the cover is properly positioned and fully latched. Failure to do so may allow water to get into the totally integrated power module and possibly result in a electrical system failure.

• When replacing a blown fuse, it is important to use only a fuse having the correct amperage rating.

The use of a fuse with a rating other than indicated may result in a dangerous electrical system overload.

If a properly rated fuse continues to blow, it indicates a problem in the circuit that must be corrected.
