Trailer Towing Weights (Maximum Trailer Weight Ratings)

Jeep Wrangler / Jeep Wrangler Owner's Manual / Starting And Operating / Trailer Towing / Trailer Towing Weights (Maximum Trailer Weight Ratings)

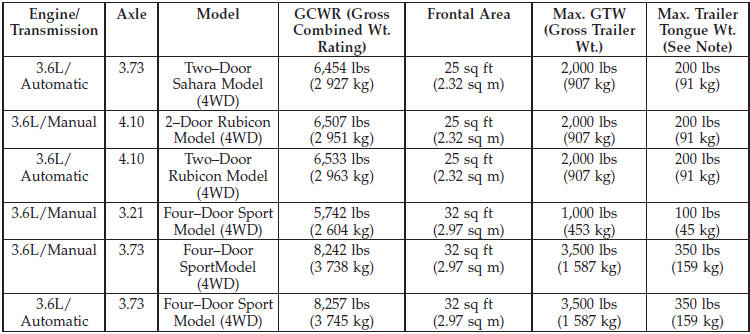

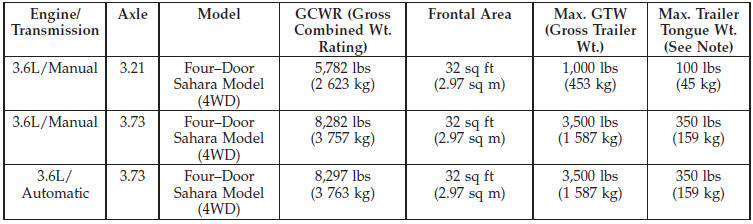

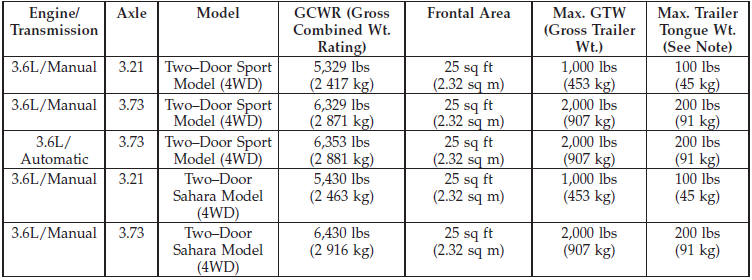

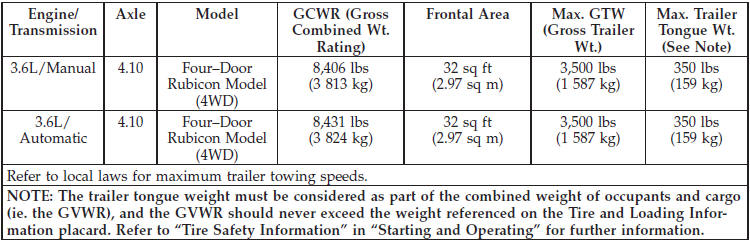

The following chart provides the maximum trailer weight ratings towable for your given drivetrain.

Trailer And Tongue Weight
